How much area will be added, if use iSTART MBIST

Post by iSTART »

ISTART MBIST uses hardware sharing architecture. So, it will add less circuit and the proportion of MBIST area will drop rapidly while the memory exceeds 4 instances. The proportion of MBIST does not increase with the amount of memory.

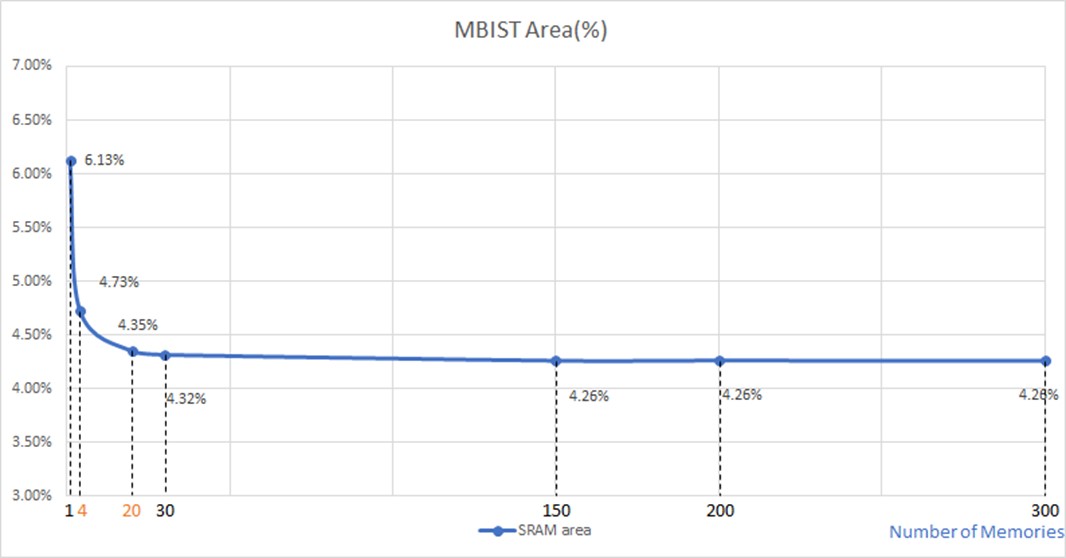

From following statistics, compare to memory area, if memory exceed 4 instances, the proportion of MBIST stays on around 4%
MBIST Area.jpg
MBIST Area.jpg (58.37 KiB) Viewed 5759 times
MBIST Area.jpg
MBIST Area.jpg (58.37 KiB) Viewed 5759 times

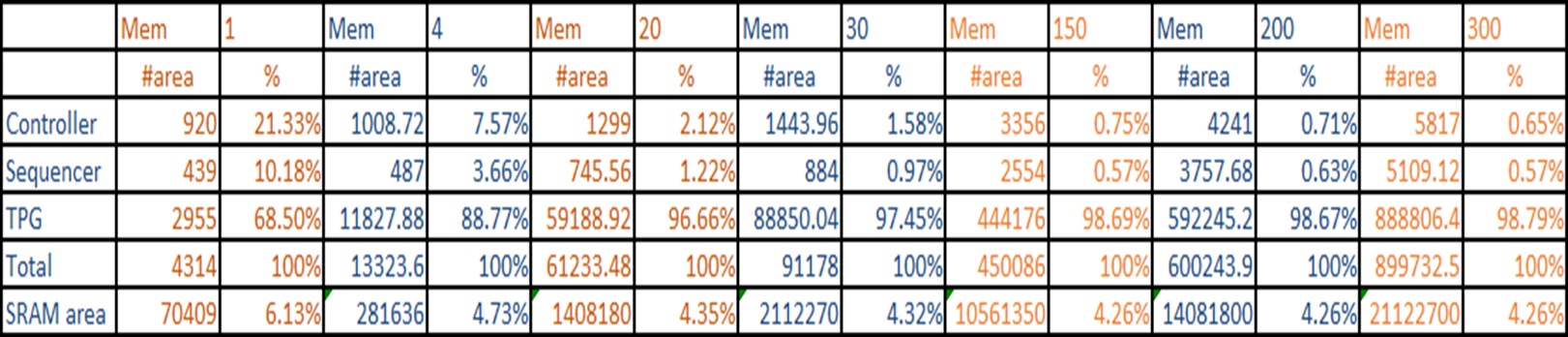

SRAM areas.jpg
SRAM areas.jpg (199.64 KiB) Viewed 5759 times
SRAM areas.jpg
SRAM areas.jpg (199.64 KiB) Viewed 5759 times
Area units.jpg
Area units.jpg (5.56 KiB) Viewed 5759 times
Area units.jpg
Area units.jpg (5.56 KiB) Viewed 5759 times
